VisCubeā„¢ C4-T2

CAVE Immersive 3D Display

VisCube C4-T2

Key Features:

Tall and high resolution CAVE VR system
Compact footprint: fits into small spaces
– Multi-screen Immersion: 3 walls and a floor
Large 10’x9′ screens
2840×2560 resolution per surface
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

The VisCubeā„¢ C4-T2 is a tall and high resolution CAVE immersive virtual reality system. It features three 10′ x 9′ rear-projection walls and a front projected floor. The VisCube C4-T2 is configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C4-T2 is compact and can be installed in small spaces.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

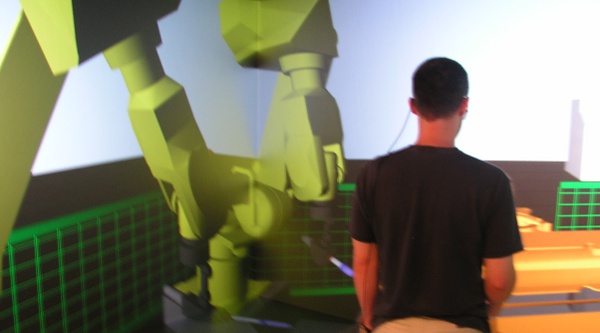

VisCube C4-T2 (used by permission (c) N Polys)

VisCube C4-T2 Benefits

Small Group Collaboration
The VisCube C4-T2 is ideal for small group 3D collaboration.

Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.

VisCube C4-T2
Tall Screens
The VisCube C4-T2 features tall 10’x9′ screens.

Turn-key VR system
Fully integrated, including sound system and control console.

Multi-Screen Applications

The VisCube provides increased immersion using multiple display surfaces surrounding the user. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

VisCube C4-T2 Datasheet

visbox logo
System Specifications
– Screens: 3 walls + 1 floor
– Resolution: 2840×2560 per screen
– Screen size: 120″w x 108″h
– Footprint: 24.5’w x 17’d x 10.5’h (approx)
Includes:
– 8 active stereo projectors (2560×1600)
– Digital edge blending
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of glasses
– Video, projector control, projector sync, and power cabling
– Integrated wire ducts for clean cabling
– Installed and calibrated on-site by Visbox, Inc.
A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand (controller)
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– 5.1 Surround speakers: 5 satellite, subwoofer
– 5.1 Surround system processor/amplifier

Option: Light Block
– Fabric enclosing system
– Blocks ambient light and restricts access

Other options are also available. Contact us for pre-sales support.

VisCube C4-T2 Top DrawingVisCube C4-T2 Front Drawing

Other VisCube Models

VisCube M2, M4: 10′-12′ wide, 1920×1200
VisCube C2, C4: 12′ wide, 1920×1200 or 2560×1600
VisCube C4-4K: 14.25′ wide, 4096×2160
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096

Custom: custom screen size, resolution
