VisBox-SX8 - Immersive 3D Display

Home > Products > Immersive Displays > VisBox > VisBox-SX8

Key Features:

- 8'x6' screen, rear-projection unit, only 5' deep
- SXGA+ (1400x1050) resolution
- Bright stereo graphics (3500 lumens per projector)
- Multi-use: mono, stereo, tracked stereo (VR)
- Custom configurations available, see Services page

VisBox-SX8^TM

Immersive 3D Display

VisBox-X1

Compatibility
The VisBox-SX8 accepts two DVI digital inputs. The system can be run from a single computer and is compatible with a wide variety of system configurations, including:
- Linux workstations
- Windows workstations
- Apple workstations

Other VisBox Models

VisBox-HD6: 6'x3.4' screen, 1920x1080
VisBox-HD8: 8'x4.5' screen, 1920x1080
VisBox-SX10: 10'x7.5' screen,1400x1050
VisBox-SX12: 12'x9' screen, 1400x1050
VisBox-4K: 14'x7.4' screen, 4096x2160!

Custom: custom screen size, resolution

Multi-screen: VisCube-SX

Compare All VisBox Models

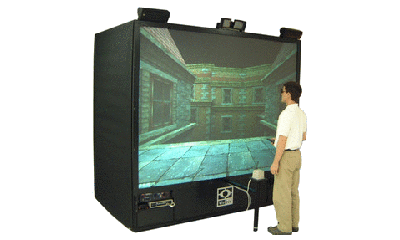

The VisBox-SX8^TM model features a 8'x6' screen size with a depth of only 5 feet and high resolution projectors that output 1400x1050 (SXGA+) at 3500 lumens each. Like the the other VisBox^TM models, it is available either as a stand-alone 3D stereo display or as a turn-key projection-based VR system with head and wand tracking.

For more general information about VisBox systems and their applications, visit the VisBox page.

For detailed information about the SX8 model, view the VisBox-SX8 Datasheet below. To compare the VisBox-SX8 to the other VisBox models, visit the VisBox Models page.

In addition to the standard VisBox models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisBox-SX8 Datasheet

	System Specifications - Resolution: 1400 x 1050 - Screen size: 96"w x 72" h (120" diagonal) - Footprint: 101"w x 90"h x 60"d Includes: - Two digital SXGA+ projectors, 3500 lumens each - Free-standing enclosure with dual front-surface mirrors inside - Hidden casters for movement within room - Custom projector positioners - Linear polarization filters and 10 pairs of glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Borderless Screen Edge - Borderless screen edge on both sides of unit - Allows multiple VisBox-SX8 units to be used side-by-side
	Option: Circular Polarization - Circular polarization filters and 10 pairs of circular glasses
	Option: Infitec - Infitec filters and 6 pairs of glasses (2 premium, 4 standard)
	Option: Active Stereo - Active stereo capable SXGA+ projector (3 chip DLP) - 3 pairs of active shutter glasses
	Option: VisTrack Tracking Package - VisTrack wireless optical head tracker - 1 pair tracked glasses
	Option: Ascension Tracking - Ascension Flock of Birds (FOB) with long range transmitter (ERT) - Head sensor, WANDA 3 button wand
	Option: Intersense Tracking - IS-900 PCTracker or SimTracker - MiniTrax head tracker, MiniTrax 6 button wand
	Option: Graphics Workstation - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
