Key Features:

- Multi-screen Immersion: 3 walls and a floor
- Large 10'x10' wide screens
- 1920x1920 resolution per surface
- Multi-use: mono, stereo, tracked stereo (VR)
- Custom configurations available, see Services page

VisCube-2HD^TM

Multi-Screen Immersive 3D Display

Multi-Screen Applications

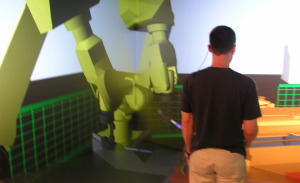

The VisCube-2HD provides increased immersion using multiple display surfaces surrounding the user. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

Other VisCube Models

VisCube-SX: 10' wide, 1400x1050
VisCube-HD: 13.3' wide, 1920x1080
VisCube-4K: 13.3' wide, 4096x2400

Custom: custom screen size, resolution

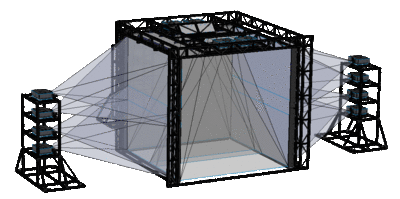

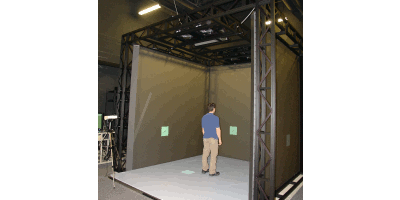

The VisCube-2HD^TM is a CAVE-like immersive virtual reality system. It features three 10' x 10' rear-projection walls and a front projected floor. The VisCube-2HD can be configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See options below.

For general information about immersive 3D applications, visit the Immersive 3D Applications page.

For detailed information about the 2HD model, view the VisCube-2HD Datasheet below.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube-2HD Datasheet

	System Specifications - Resolution: 1920x1920 per screen - Screens: 3 walls + 1 floor - Screen size: 120"w x 120"h (170" diagonal) - Footprint: 32'w x 21'd x 11.5'h (approx) Includes: - 16 digital HD projectors - Free-standing structure with front-surface mirrors - Raised floor surface - Custom projector positioners - Circular polarization filters and 10 pairs of glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Infitec - Infitec filters and 10 pairs of premium glasses
	Option: Active Stereo - Active stereo capable HD projectors (3 chip DLP) - 10 pairs of active shutter glasses
	Option: Intersense Tracking - IS-900 SimTracker - MicroTrax head tracker, MicroTrax 6 button wand
	Option: A.R.T. Optical Tracking - TrackPack4 (4 cameras) - Head tracker, Flystick2 (wand)
	Option: Image Generator - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
