Key Features:

- Ultra resolution CAVE-like system
- Multi-screen Immersion: 3 walls and a floor
- Extra large 13.3' wide front wall allows more viewers
- 4K (4096x2400) resolution!
- Multi-use: mono, stereo, tracked stereo (VR)
- Custom configurations available, see Services page

VisCube-4K^TM

Multi-Screen Immersive 3D Display

Ultra Resolution
The VisCube-4K is similar in layout to the VisCube-HD except with more than 4 times the resolution! Multiple screens surround the users for maximum immersion. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

Other VisCube Models

VisCube-SX: 10' wide, 1400x1050
VisCube-HD: 13.3' wide, 1920x1080

Custom: custom screen size, resolution

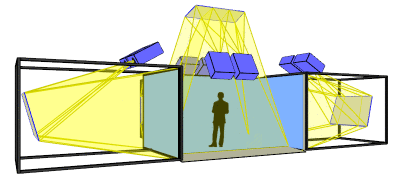

The VisCube-4K^TM is an extreme resolution CAVE-like immersive virtual reality system. It features rear-projection walls and a front projected floor. The 13.3' wide front wall and floor allow more viewers in the space than the standard 10' wide configuration (VisCube-SX). The VisCube-4K can be configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See options below.

For general information about immersive 3D applications, visit the Immersive 3D Applications page.

For detailed information about the 4K model, view the VisCube-4K Datasheet below.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube-4K Datasheet

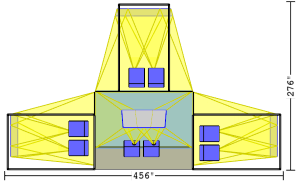

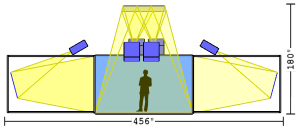

	System Specifications - Resolution: 4096x2400 front wall, floor 3072x2400 side walls - Screens: 3 walls + 1 floor - Screen size: 160"w x 94"h front wall, floor 120"w x 94"h side walls - Footprint: 38'w x 23'd x 15'h (approx) Includes: - 8 digital 4K projectors, 3500 or 5000 lumens each - Free-standing structure with front-surface mirrors - Raised floor surface - Custom projector positioners - Circular polarization filters and 10 pairs of glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Infitec - Infitec filters and 10 pairs of premium glasses
	Option: Intersense Tracking - IS-900 SimTracker - MicroTrax head tracker, MicroTrax 6 button wand
	Option: Image Generator - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
