Key Features:

- High resolution CAVE-like system
- Fits into existing spaces with minimal room modifications
- Multi-screen Immersion: 3 walls and a floor
- Extra large 12' wide front wall allows more viewers
- WUXGA (1920x1200) resolution
- Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
- Custom configurations available, see Services page

VisCube™ C4-WU

Multi-Screen Immersive 3D Display

Multi-Screen Applications
The VisCube provides increased immersion using multiple display surfaces surrounding the user. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

Other VisCube Models

VisCube C2-HD: 13.3' wide, 1920x1080
VisCube C4-HD: 13.3' wide, 1920x1080
VisCube C4-WQ: 12' wide, 2560x1600
VisCube C4-2HD: 10' wide, 1920x1920
VisCube C4-4K: 13.3' wide, 4096x2400

Custom: custom screen size, resolution

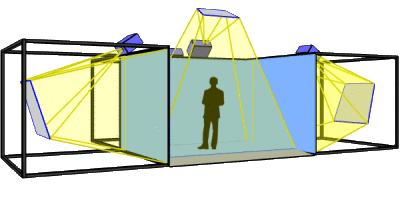

The VisCube™ C4-WU is a high-resolution CAVE-like immersive virtual reality system. It features rear-projection walls and a front projected floor. The 12' wide front wall and floor allow more viewers in the space than the standard 10' wide configuration (VisCube C4-SX). The VisCube C4-WU can be configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See options below.

The VisCube C4-WU can be installed in existing spaces with minimal room modifications. Only a small area directly above the floor projection requires more than 9' of ceiling height.

For detailed information about the C4-WU model, view the VisCube C4-WU Datasheet below.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube C4-WU (264 KB) - One page printable PDF.

VisCube C4-WU Datasheet

	System Specifications - Resolution: 19200x1200 front wall, floor 1600x1200 side walls - Screens: 3 walls + 1 floor - Screen size: 144"w x 90"h front wall, floor 120"w x 90"h side walls - Footprint: 30'w x 19.2'd x 12'h (approx) Includes: - 4 active stereo capable WUXGA projectors (1920x1200) - Free-standing structure with front-surface mirrors - Raised floor surface - Custom projector positioners - Active Stereo and 10 pairs of shutter glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Intersense Tracking - IS-900 SimTracker - MicroTrax head tracker, MicroTrax 6 button wand
	Option: A.R.T. Optical Tracking - TrackPack4 (4 cameras) - Head tracker, Flystick2 (wand)
	Option: Image Generator - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
