VisCube™ C4-4K (Legacy)

CAVE Immersive 3D Display

VisCube C4-4K

Key Features:

High resolution CAVE VR system
– Multi-screen Immersion: 3 walls and a floor
– Extra large 14.3′ wide front wall allows more viewers
4K (4096×2160) resolution projectors
Laser light source: stable color, no lamp changes
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

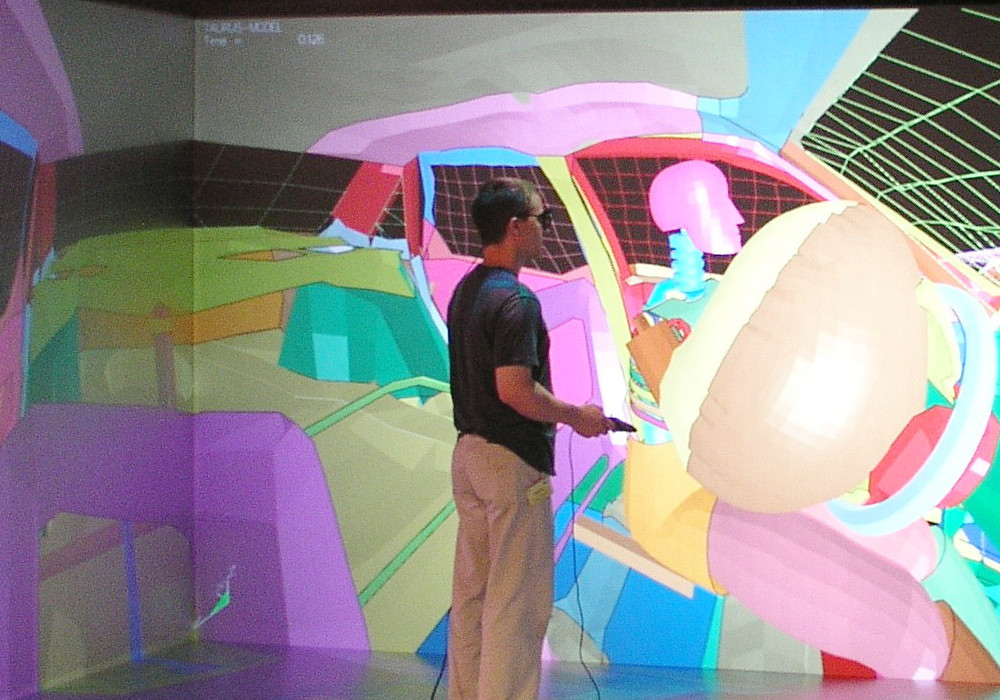

The VisCube™ C2-4K and VisCube™ C4-4K are high resolution CAVE immersive virtual reality systems. They feature rear-projection wall(s) and a front projected floor. The 14.25′ wide front wall and floor allow more viewers in the space than a standard 10′ wide CAVE configuration. The VisCube C2-4K and VisCube C4-4K are configured as turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C2-4K and C4-4K feature projectors with a laser light source, providing stable color and eliminating lamp replacements.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube

VisCube C4-4K Benefits

Small Group Collaboration
The VisCube C4-4K is ideal for small group 3D collaboration.
Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.

Laser light source
Stable and color-accurate imagery, no lamp changes.

Turn-key VR system
Fully integrated, including sound system and control console.

4K resolution

High Resolution

The VisCube C4-4K uses active stereo like the VisCube C4 except with almost 4 times the resolution. Multiple screens surround the users for maximum immersion. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

VisCube C4-4K Datasheet

visbox logo
System Specifications
– Screens for C2-4K: wall + floor
– Screens for C4-4K: 3 walls + floor
– Resolution of front, floor: 4096×2160
– Resolution of side walls (C4-4K): 2860×2160
– Screen size of front, floor: 172″w x 91″h
– Screen size of side walls (C4-4K): 120″w x 91″h
– Footprint for C2-4K: 14.3’w x 18.5’d x 10.3’h (approx)
– Footprint for C4-4K: 30.6’w x 18.5’d x 10.3’h (approx)
Includes:
– 2 or 4 active stereo capable 4K projectors (4096×2160)
– Laser light source: stable color, no lamp changes
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– Soundbar and subwoofer
Option: Surround Sound System
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Option: MiddleVR for Unity
– Run Unity applications in the VisCube (Read More)
Other options are also available.

Contact us for pre-sales support.

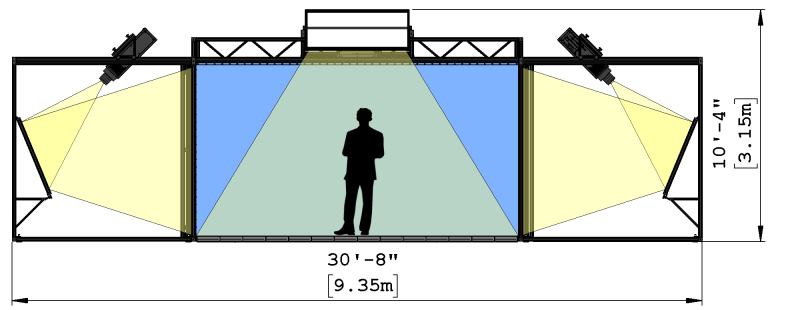

VisCube C4-4K dimensions

c4-4k-sw3-dims-top-800

c4-4k-sw3-dims-front-800

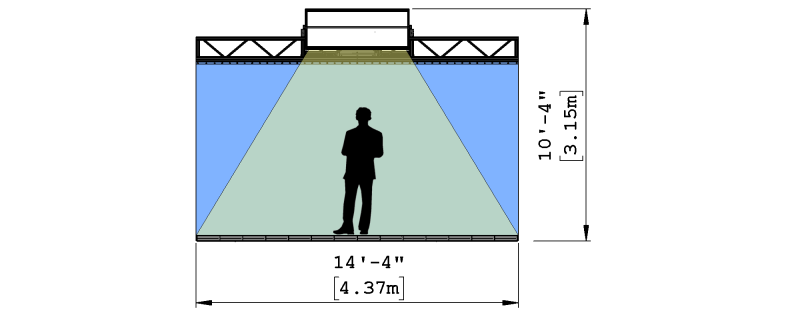

VisCube C2-4K dimensions

c2-4k-sw3-dims-top-800c2-4k-sw3-dims-front-800


Other VisCube Models

VisCube M4, M5: 12′ wide, 1920×1200
VisCube C1, C2, C4: 12′ wide, 2560×1600
VisCube C4-4KU: 12′ wide, 3840×2400
VisCube C4-T2: 10′ wide, 2840×2560
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096
VisCube LED: DirectView LED, bright, scalable

Custom: custom screen size, resolution
