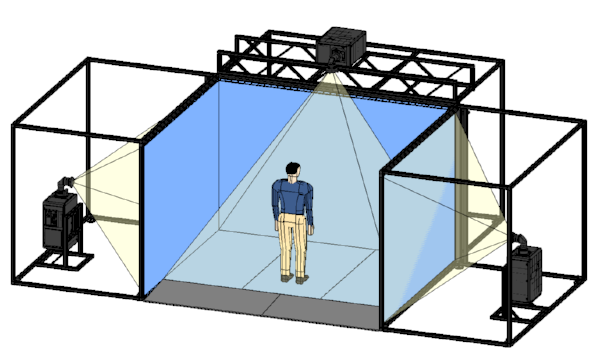

VisCube™ C4-4KU

CAVE Immersive 3D Display

VisCube C4-4K

Key Features:

High resolution CAVE VR system
– Multi-screen Immersion: 3 walls and a floor
– Large 12′ wide front wall allows more viewers
4K UHD (3840×2400) resolution projectors
Laser light source: stable color, no lamp changes
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
DEP option: 240hz allowing 2 separate 3D viewpoints
– Custom configurations available, see Services page

The VisCube™ C2-4KU and VisCube™ C4-4KU are high resolution CAVE immersive virtual reality systems. They feature rear-projection wall(s) and a front projected floor. The 12′ wide front wall and floor allow more viewers in the space than a standard 10′ wide CAVE configuration. The VisCube C2-4KU and VisCube C4-4KU are configured as a turn-key immersive virtual reality systems, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C2-4KU and VisCube C4-4KU feature projectors with a laser light source, providing stable color and eliminating lamp replacements.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube

VisCube C4-4KU Benefits

Small Group Collaboration
The VisCube C4-4KU is ideal for small group 3D collaboration.
Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.
Laser light source
Stable and color-accurate imagery, no lamp changes.
Turn-key VR system
Fully integrated, including sound system and control console.
4K resolution

Multi-Screen Applications

The VisCube provides increased immersion using multiple display surfaces surrounding the user. The floor projection allows users to move in and around virtual objects. Read more about immersive 3D applications on the Immersive 3D Applications page. For custom VisCube configurations, see the Services section.

VisCube C4-4KU Datasheet

visbox logo
System Specifications
– Screens for C2-4KU: wall + floor
– Screens for C4-4KU: 3 walls + floor
– Resolution of front, floor: 3840×2400
– Resolution of side walls (C4-4KU): 3200×2400
– Screen size of front, floor: 144″w x 90″h (3.66m x 2.29m)
– Screen size of side walls (C4-4KU): 120″w x 90″h (3.05m x 2.29m)
– Footprint for C2-4KU: 12.0’w x 17’d x 10.5’h (3.66m x 5.14m x 3.13m)
– Footprint for C4-4KU: 25.5’w x 17’d x 10.5’h (7.73m x 5.15m x 3.13m)
Includes:
– 2 or 4 active stereo capable 4K UHD projectors (3840×2400, 15k lumens)
– Laser light source: stable color, no lamp changes
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– Soundbar and subwoofer
Option: Surround Sound System
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Option: MiddleVR for Unity
– Run Unity applications in the VisCube (Read More)
Option: DEP (dual eyepoint)
– 240hz display allowing for two separate 3D viewpoints
– Resolution decreases to 2560×1600 per surface when enabled
Other options are also available.

Contact us for pre-sales support.

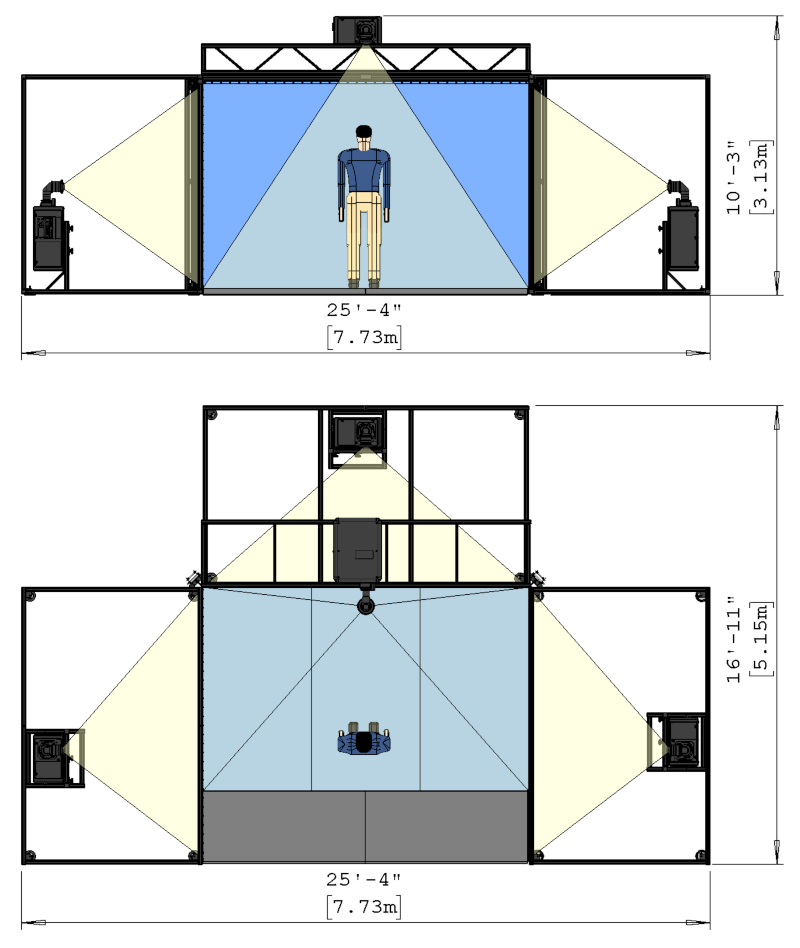

VisCube C4-4KU dimensions
c4-4ku-dims-top-800

c4-4ku-dims-front-800

VisCube C2-4KU dimensions

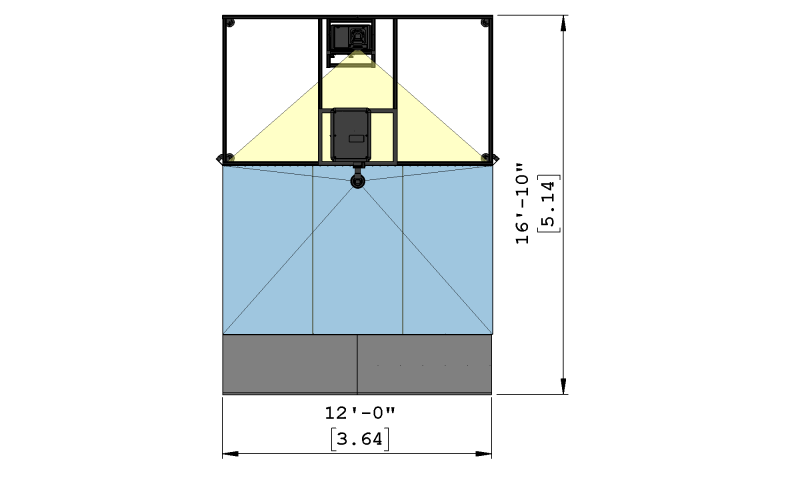

c2-4ku-sw-dims-top-800

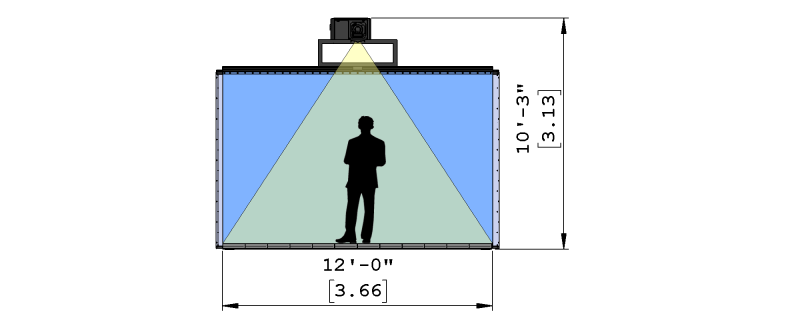

c2-4ku-sw-dims-front-800


Other VisCube Models

VisCube M4, M5: 12′ wide, 2560×1600
VisCube C1, C2, C4: 12′ wide, 2560×1600
VisCube C4-T2: 10′ wide, 2840×2560
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096

Custom: custom screen size, resolution
