VisCube™ C4-T3X

CAVE Immersive 3D Display

VisCube C4-T3X

Key Features:

Extreme resolution CAVE VR system
Small footprint: fits into existing spaces
– Multi-screen Immersion: 3 walls and a floor
– Extra large 13.2′ wide front wall allows more viewers
6000×4096 resolution front wall and floor
Laser light source: stable color, no lamp changes
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– High framerate (240hz) for dual-view (2 separate 3D viewpoints)
– Custom configurations available, see Services page

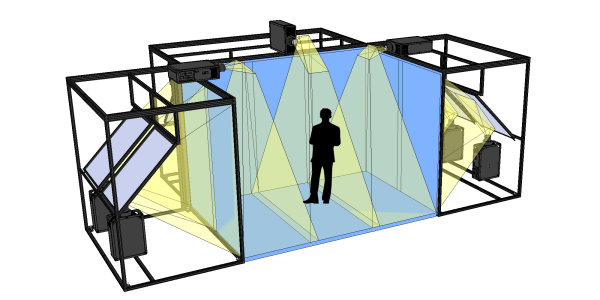

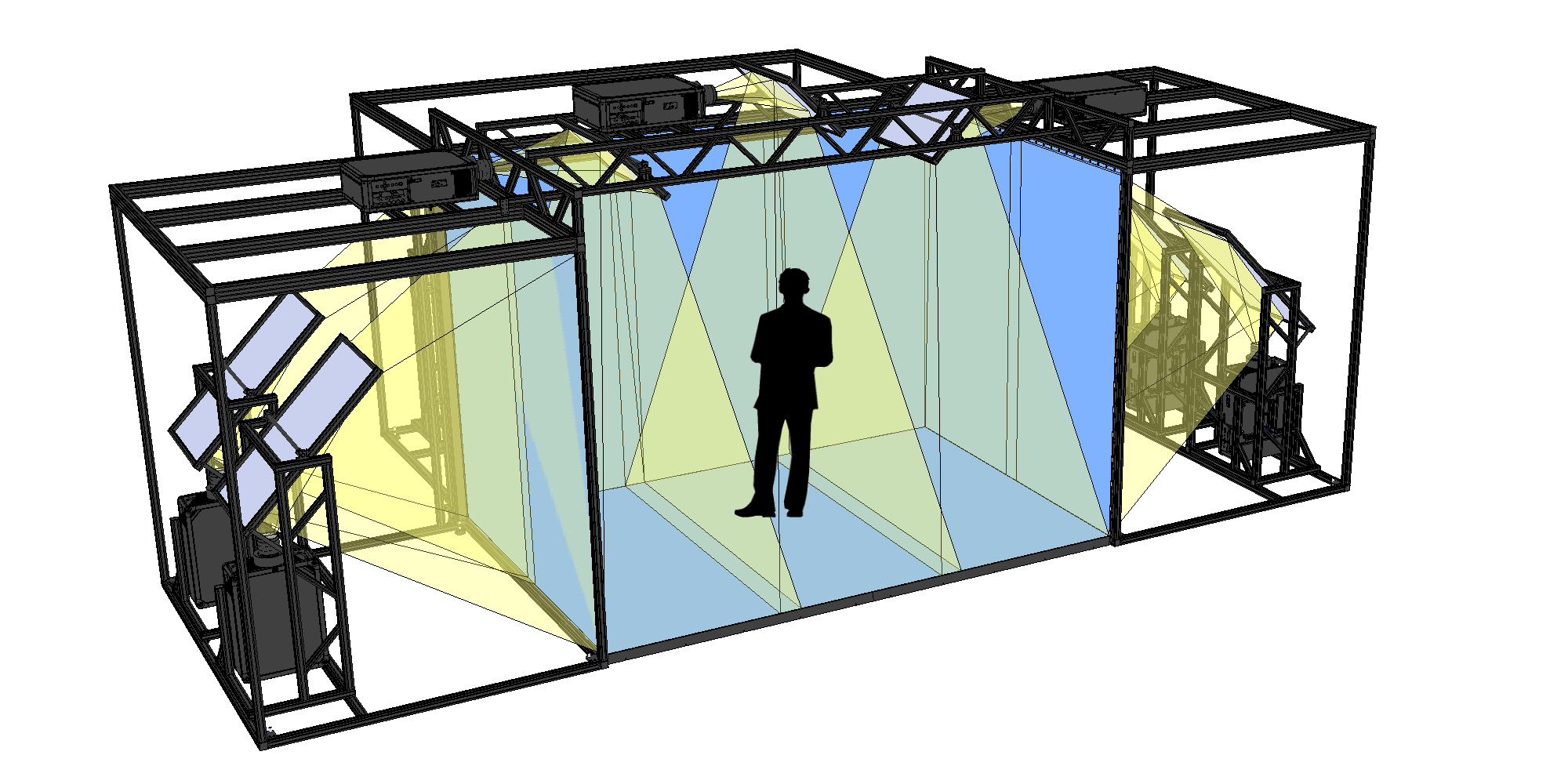

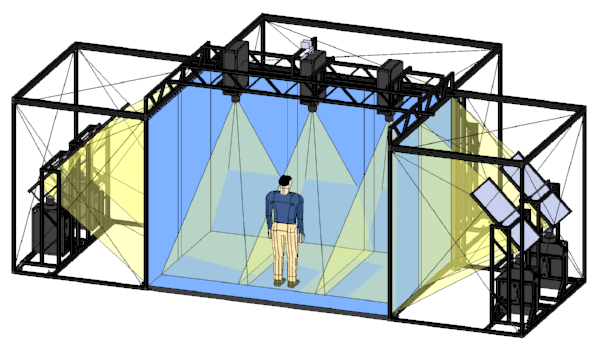

The VisCube™ C4-T3X is an extreme resolution CAVE immersive virtual reality system. It features rear-projection walls and a front projected floor. The 13′ wide front wall and floor allow more viewers in the space than a standard 10′ wide CAVE configuration. The VisCube C4-T3X is configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C4-T3X features projectors with a laser light source, providing stable color and eliminating lamp replacements.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube

VisCube C4-T3X Benefits

Small Group Collaboration
The VisCube C4-T3 is ideal for small group 3D collaboration.

Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.

Extreme Resolution
6000×4096 front wall and floor, 4096×4096 side walls

Turn-key VR system
Fully integrated, including sound system and control console.

Extreme Resolution

Extreme Resolution

The VisCube T3X provides much higher resolution than other CAVE sytems. Multiple screens surround the users for maximum immersion. Read more about immersive 3D applications on the Immersive 3D Applications page. For custom VisCube configurations, see the Services section.

VisCube C4-T3X Datasheet

visbox logo
System Specifications
– Screens: 3 walls + 1 floor
– Resolution of front, floor: 6000×4096
– Resolution of side walls: 4096×4096
– Screen size of front, floor: 158″w x 108″h (4.01m x 2.74m)
– Screen size of side walls: 108″w x 108″h (2.74m x 2.74m)
– Footprint: 28’w x 16.7’d x 12.3’h (8.54m x 5.07m x 3.73m)
Includes:
– 10 active stereo 4K projectors (4096×2160 each)
– Laser light source: stable color, no lamp changes
– Digital edge blending
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
ART logo
A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand (controller)
NVIDIA logo
Image Generator
– Graphics workstation cluster with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– Soundbar and subwoofer
Option: Surround Sound System
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Option: MiddleVR for Unity
– Run Unity applications in the VisCube (Read More)
Option: Dual-View
– Special 3D glasses (240hz) to allow for 2 separate 3D viewpoints

Other options are also available.

Contact us for pre-sales support.

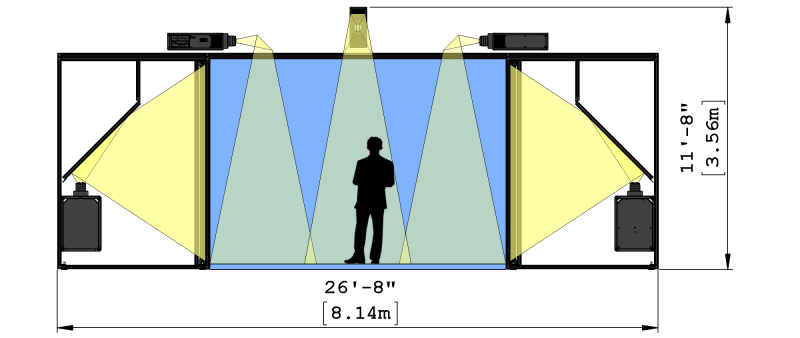

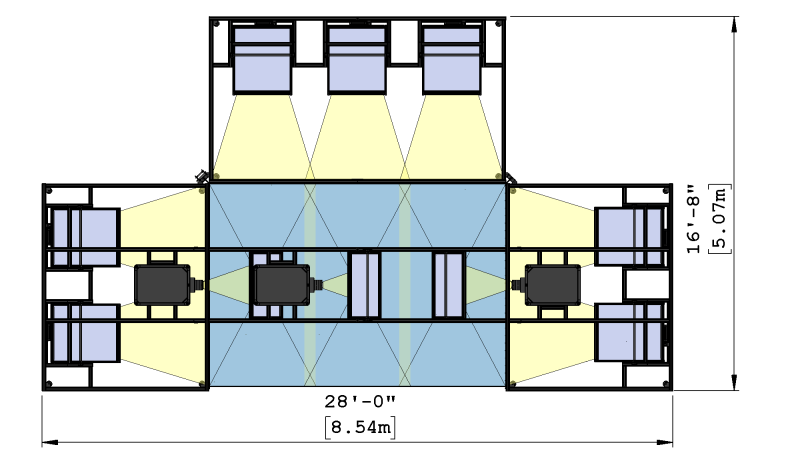

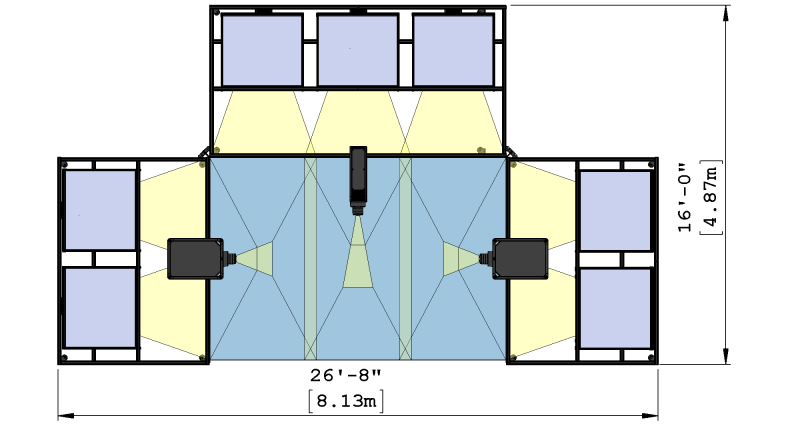

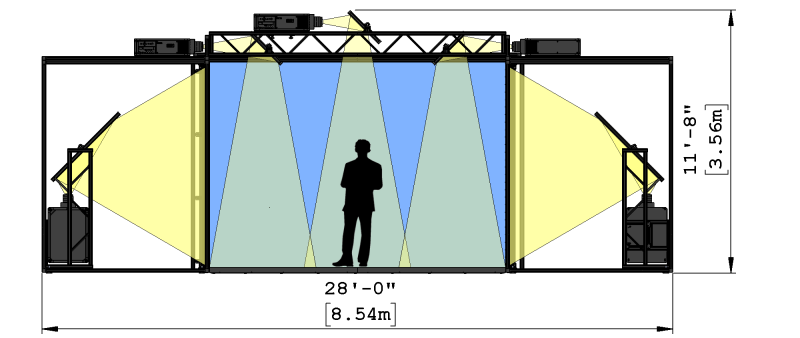

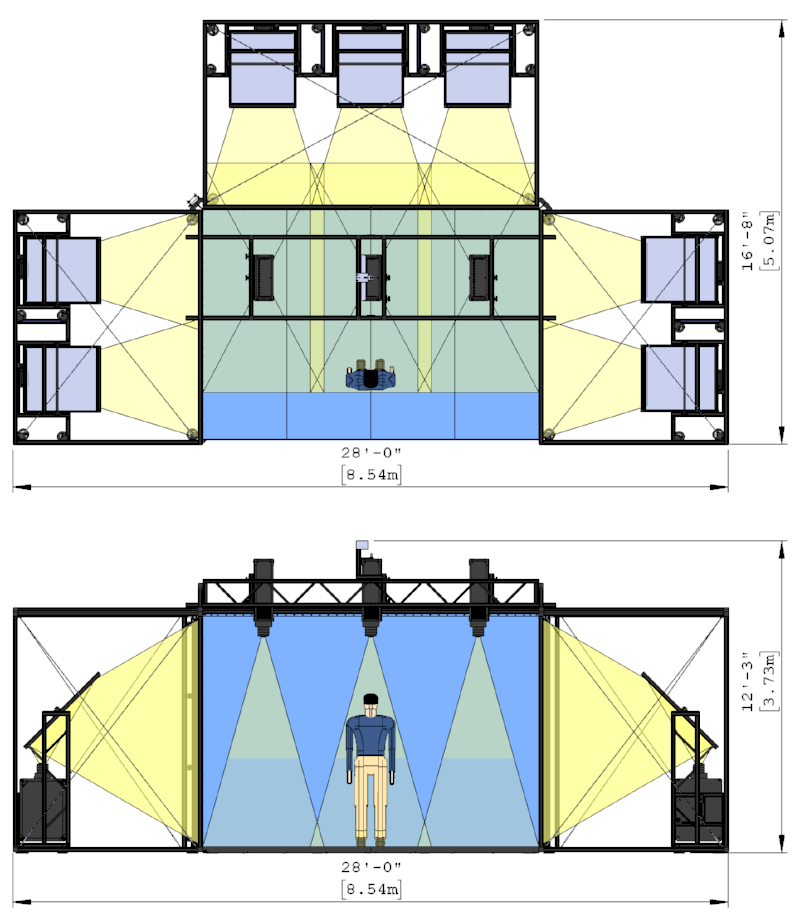

VisCube C4-T3X Top DrawingVisCube C4-T3X Front Drawing

Other VisCube Models

VisCube M4, M5:: 12′ wide, 1920×1200
VisCube M4-6K: 14′ wide, 6144×3240
VisCube C4-4KU: 12′ wide, 3840×2400
VisCube C4-T2X: 10′ wide, 4096×4096
VisCube LED: DirectView LED, bright, scalable

Custom: custom screen size, resolution
