VisWall™ 4K

High Resolution PowerWall 3D Display

VisWall 4K

Key Features:

– High Resolution PowerWall display wall
– Free-standing or in-wall (e.g. conference room)
– Extra large 14.3′ wide screen
4K (4096×2160) resolution projector
Laser light source: stable color, no lamp changes
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

The VisWall™ 4K is a high resolution PowerWall display wall. The VisWall 4K features a large rear-projection wall. This system can be configured as a standalone display or as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

The VisWall 4K features projectors with a laser light source, providing stable color and eliminating lamp replacements.

In addition to the standard VisWall models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.


VisWall 4K Benefits

Small Group Collaboration
The VisWall is ideal for small group collaboration.
Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.
Laser light source
Stable and color-accurate imagery, no lamp changes.
Turn-key system
Fully integrated, including sound system and control console.
4K resolution

High Resolution

The VisWall 4K makes use of a large screen and a 4K resolution projector that is stereo 3D capable. The result is a High Resolution Display that can run High Resolution Applications and Immersive 3D Applications. For custom VisWall configurations, see the VisWall T9, T25, custom section.

VisWall 4K Datasheet

visbox logo
System Specifications
– Resolution: 4096×2160
– Screen size: 172″w x 91″h (4.37m x 2.31m)
– Footprint: 14.3’w x 8.2’d x 9.5’h (4.37m x 2.49m x 2.90m)

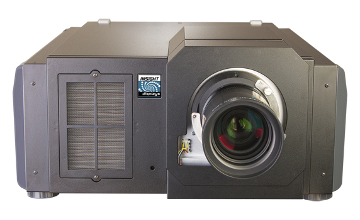

– Active stereo 3D capable 4K projector (4096×2160)
– Laser light source: stable color, no lamp changes
– In-wall or free-standing structure
– Custom projector positioner
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Option: A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand (controller)
Option: Sound System
– Soundbar and subwoofer (4.1)
Option: Light Block
– Fabric enclosing system for free-standing version
– Blocks ambient light and restricts access

Other options are also available. Contact us for pre-sales support.

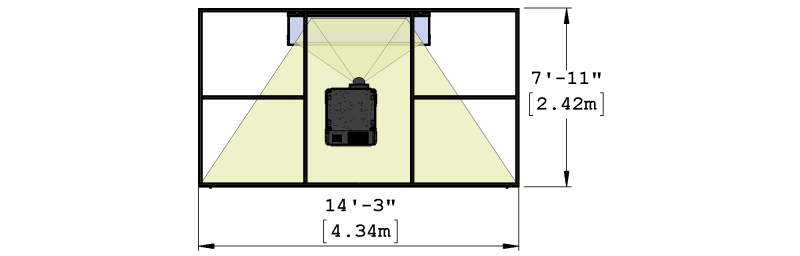

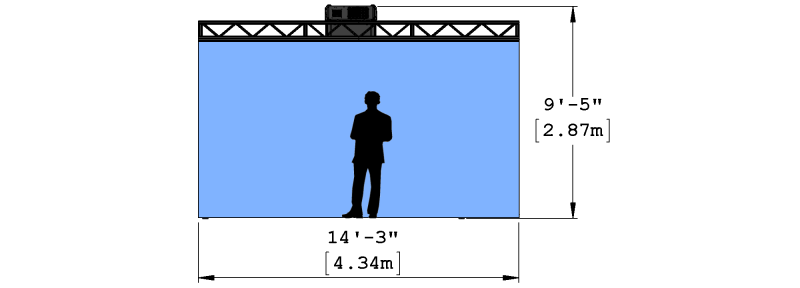

VisWall 4K drawing topVisWall 4K drawing front

Other VisWall Models

VisWall T3W, T3: 10′ or 12′ wide, 4096×2560

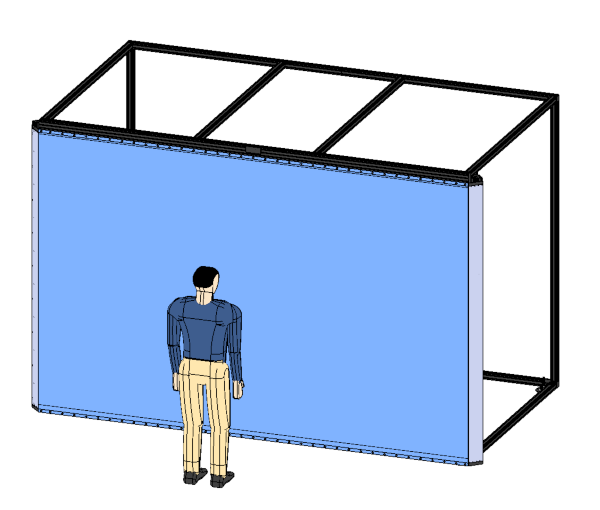

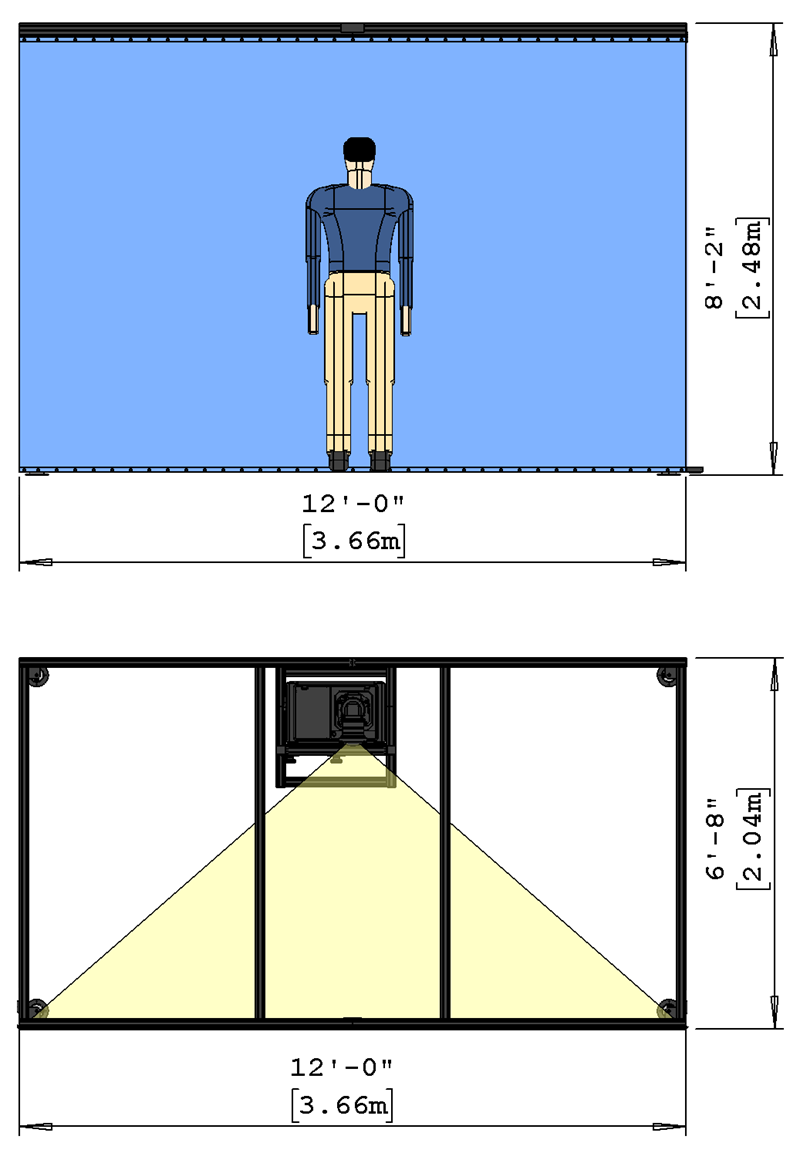

VisWall T4: 12′ wide, 4600×2875, only 30″ deep
VisWall custom: custom resolution and screen size
VisWall-LCD: array of LCD panels
