VisCube™ M4, M5

CAVE Immersive 3D Display

VisCube M2, M4

Key Features:

Low cost front projected CAVE VR systems
Ultra compact footprint: fits into very small spaces
– Free-standing: can be placed anywhere in a room
– Multi-screen Immersion: 4 or 5 screens
– Extra large 12′ wide front wall allows more viewers
2560×1600 resolution projectors
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

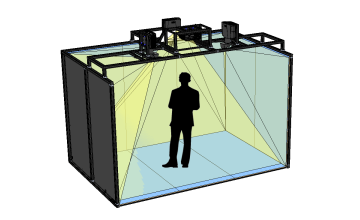

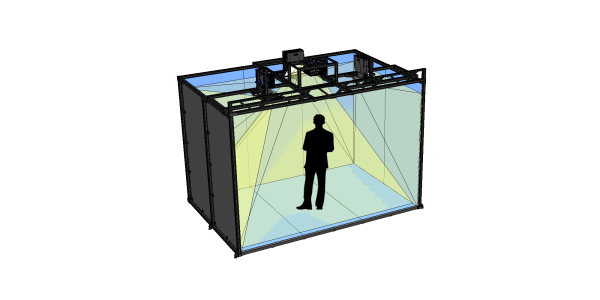

The VisCube™ M4 and M5 are low cost, high performance front projected CAVE immersive virtual reality systems. The VisCube M4 is a traditional CAVE with 3 walls and a floor. The VisCube M5-W adds a back wall for 360 immersion and a door for egress. The VisCube M5-C adds a ceiling for enhanced vertical viewing. They are free-standing, allowing them to be placed anywhere in a room. The VisCube M4 and M5 are turn-key immersive virtual reality systems, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube M4 and M5 are ultra compact. They can be installed in very small spaces.

The VisCube M4 and M5 make use of high quality ultra-short throw optics. The result is excellent image quality. Users do not cast a shadow until they are within an arm’s length from the screen. Getting any closer is not very useful, the system provides the same experience as a rear projected CAVE.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube M4VisCube M4

VisCube M4, M5 Benefits

Small Group Collaboration
The VisCube M4 and M5 are ideal for small group 3D collaboration.

Wireless Optical Tracking
Robust, wireless optical tracking for head and wand (controller)

Ultra Compact Footprint
The VisCube M4 and M5 fit into very small spaces.

Turn-key VR system
Fully integrated, including sound system and control console.

VisCube M4

Multi-Screen Applications

The VisCube provides increased immersion using multiple display surfaces surrounding the user. The floor projection allows users to move in and around virtual objects. Read more about immersive 3D applications on the Immersive 3D Applications page. For custom VisCube configurations, see the Services section.

VisCube M4, M5 Datasheet

visbox logo
System Specifications for VisCube M4
VisCube M4
– Resolution of front, floor: 2560×1600
– Resolution of side walls: 1720×1600
– Screen size of front, floor: 140″w x 87.5″h (3.56m x 2.22m)
– Screen size of side walls: 94″w x 87.5″h (2.39m x 2.22m)

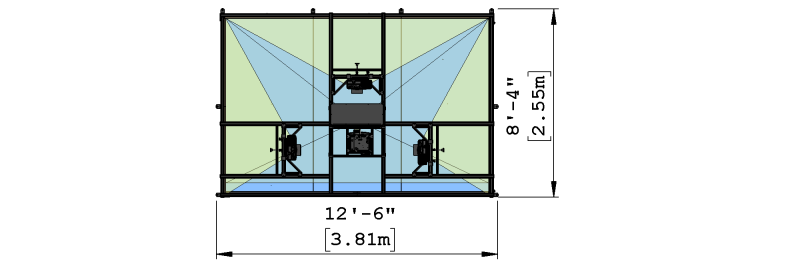

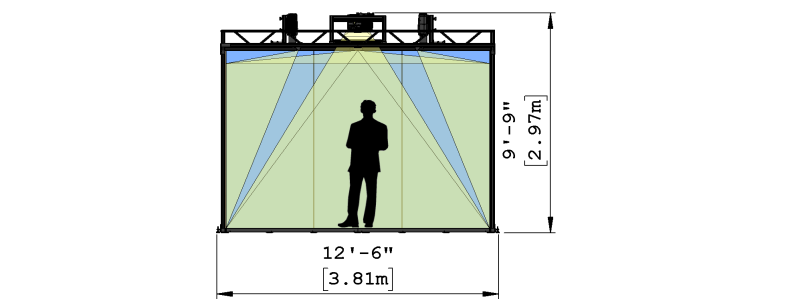

– Footprint: 12.5’w x 8.3’d x 9.7’h (3.81m x 2.55m x 2.97m)
Includes:
– 4 active stereo projectors (2560×1600)
– Free-standing structure
– Projection floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
visbox logo
System Specifications for VisCube M5-W
– Resolution of walls: 2560×1600
– Resolution of floor: 2560×2560
– Screen size of walls: 140″w x 87.5″h (3.56m x 2.22m)
– Screen size of floor: 140″w x 140″h (3.56m x 3.56m)
– Footprint: 12.5’w x 12.5’d x 10.8’h (3.81m x 3.81m x 3.26m)
Includes:
– 6 active stereo projectors (2560×1600)
– Free-standing structure
– Projection floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
visbox logo
System Specifications for VisCube M5-C
– Resolution of front: 2560×1730
– Resolution of floor, ceiling: 2560×1600
– Resolution of side walls: 1620×1730
– Screen size of front: 152″w x 103″h (3.86m x 2.62m)
– Screen size of floor, ceiling: 152″w x 95″h (3.86m x 2.41m)
– Screen size of side walls: 96″w x 103″h (2.44m x 2.62m)

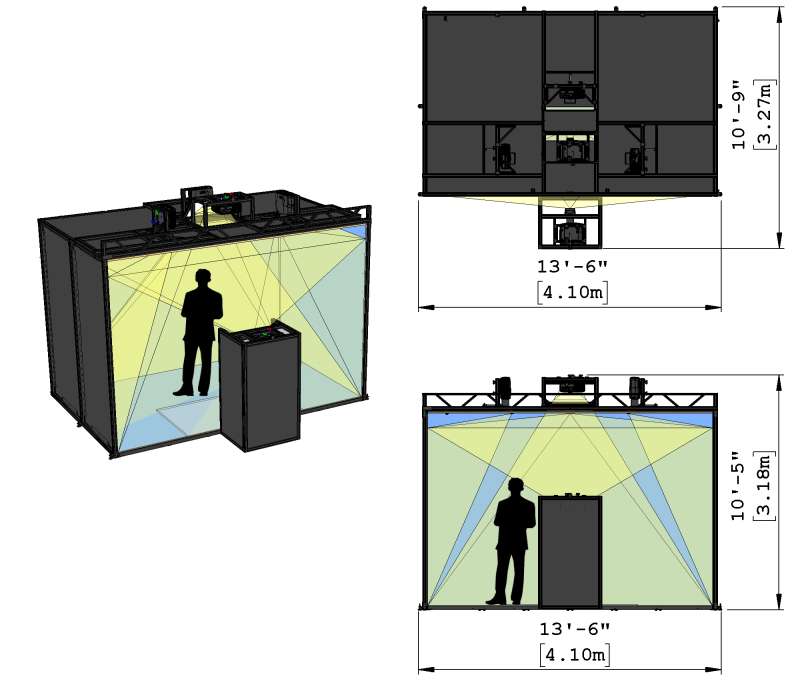

– Footprint: 13.5’w x 10.8’d x 10.5’h (4.10m x 3.27m x 3.18m)
Includes:
– 5 active stereo projectors (2560×1600)
– Free-standing structure
– Projection floor surface
– Projection ceiling surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
ART logo
A.R.T. Optical Tracking
– TrackPack4 (4 cameras)
– Tracked head, tracked wand (controller)
NVIDIA logo
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– Soundbar and subwoofer
Option: Surround Sound System
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Option: MiddleVR for Unity
– Run Unity applications in the VisCube (Read More)
Other options are also available.

Contact us for pre-sales support.

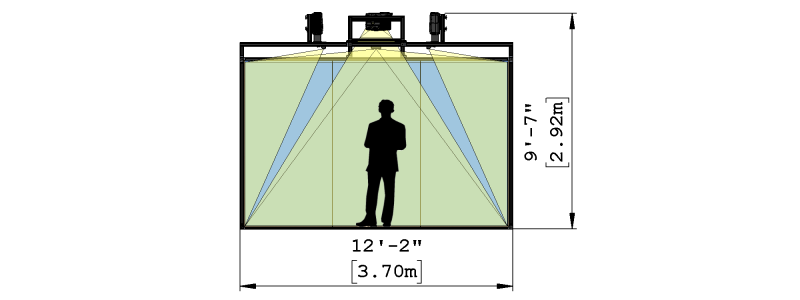

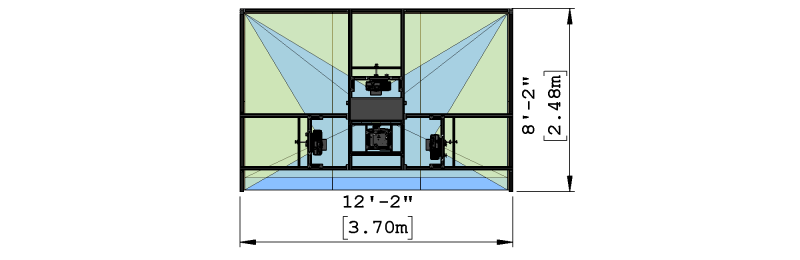

VisCube  M4 DrawingVisCube M5-W DrawingVisCube  M5-C Drawing

Other VisCube Models

VisCube C1, C2, C4: 12′ wide, 2560×1600
VisCube C4-4KU: 12′ wide, 3840×2400
VisCube C4-T2: 10′ wide, 2840×2560
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096

Custom: custom screen size, resolution
