VisBox-X3^TM

Reconfigurable Immersive 3D Display

Key Features:

- 10'x7.5' screen, rear-projection, 7.5' deep
- Borderless screen mount
- Reconfigurable multi-screen configurations
- SXGA+ resolution (1400x1050)
- Bright stereo graphics (3500 lumens per projector)
- Multi-use: mono, stereo, tracked stereo (VR)
- Custom configurations available, see Services page
Turn-key VR system (optional):
- VisTrack^TM wireless head tracker
- 6 DOF tracked input device
- Performance of latest PC graphics hardware
- Pre-configured for common VR libraries
- Turn-key demo applications pre-installed

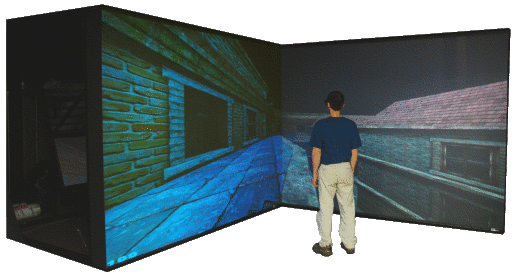

The VisBox-X3^TM model features a large screen size (10'x7.5') with a borderless screen mount and high resolution projectors that output 1400x1050 (SXGA+) at 3500 lumens each. The borderless screen mount allows multiple VisBox-X3 modules to form various surround screen configurations. VisBox-X3 modules are more affordable than comparable displays, significantly lowering the cost of ownership for multi-screen immersive systems.

Like the other VisBox models, it is available either as a stand-alone 3D stereo display or as a turn-key projection-based VR system with head and wand tracking.

For more general information about VisBox systems and their applications, visit the VisBox page.

For detailed information about the X3 model, view the VisBox-X3 Datasheet below. To compare the VisBox-X3 to the other VisBox models, visit the VisBox Models page.

In addition to the standard VisBox models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

photo of edge between two VisBox-X3 modules

Compare with other models

VisBox-X3 Configurations

VisBox-X3 modules can be arranged in a variety of surround screen configurations, including a flat wall, a faceted theater, or an immersive room. A front-projected floor module is also available for increased immersion.

VisBox-X3 configurations

In addition to being reconfigurable, a system made up of VisBox-X3 modules is easily expandable. Additional units can be purchased and added to the system as needed.

VisBox-X3 Datasheet

System Specifications
- Resolution: 1400 x 1050
- Screen size: 120"w x 90"h (150" diagonal)
- Borderless edge: ~1 pixel
- Footprint: 120"w x 95"h x 90"d
Includes:
- Two digital SXGA+ projectors, 3500 lumens each
- Free-standing enclosure with single front-surface mirror inside
- Custom projector positioners
- Infitec filters and 6 pairs of Infitec glasses (2 deluxe, 4 standard)
- Video and power cabling
- Installed and calibrated on-site by Visbox, Inc.

Option: Floor Module
- Front-projected from above

Option: Active Stereo
- Active stereo capable SXGA+ projector (3 chip DLP)
- 3 pairs of active shutter glasses

Option: Tracking Package
- VisTrack wireless optical head tracker
- 1 pair tracked glasses
- Ascension Flock of Birds electromagnetic tracker
- 6DOF tracked input device (wand)

Option: Turn-key VR system
- Tracking package (see above)
- Graphics workstation with NVIDIA graphics
- Speakers and amplifier
- Software demos, applications, and development libraries

Other options are also available.
