Key Features:

- Affordable CAVE-like system
- Fits into existing spaces with minimal room modifications
- Multi-screen Immersion: 3 walls and a floor
- Large 10' wide screens
- SXGA+ (1400x1050) resolution per surface
- Multi-use: mono, stereo, tracked stereo (VR)
- Custom configurations available, see Services page

VisCube-SX^TM

Multi-Screen Immersive 3D Display

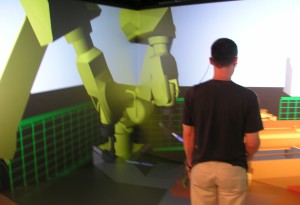

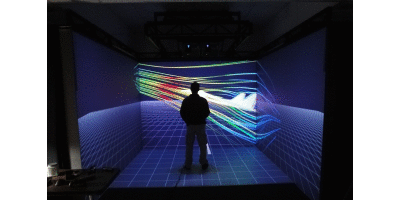

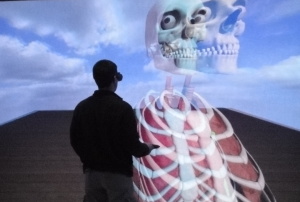

Multi-Screen Applications
The VisCube-SX provides increased immersion using multiple display surfaces surrounding the user. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

Watch VisCube-SX applications video

Other VisCube Models

VisCube-HD: 13.3' wide, 1920x1080
VisCube-2HD: 10' wide, 1920x1920
VisCube-4K: 13.3' wide, 4096x2400

Custom: custom screen size, resolution

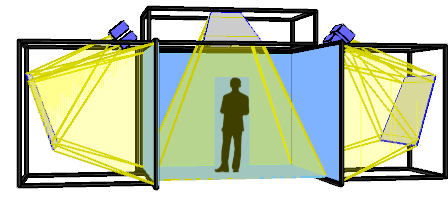

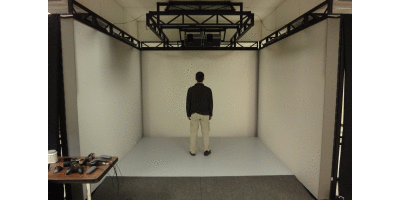

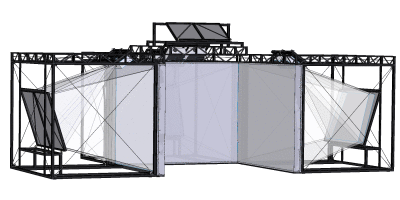

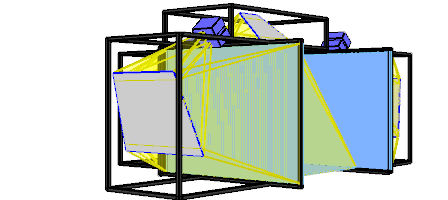

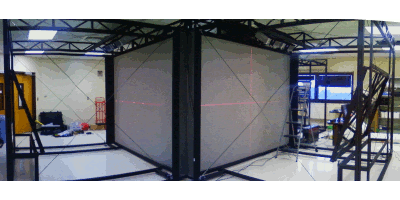

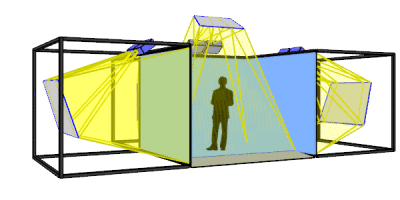

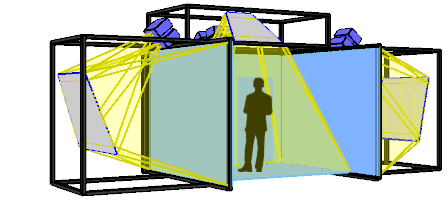

The VisCube-SX^TM is an affordable CAVE-like immersive virtual reality system. It features three 10' wide rear-projection walls and a front projected floor. The VisCube-SX can be configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See options below.

The VisCube-SX can be installed in existing spaces with minimal room modifications. Only a small area directly above the floor projection requires more than 9' of ceiling height.

For general information about immersive 3D applications, visit the Immersive 3D Applications page.

For detailed information about the SX model, view the VisCube-SX Datasheet below.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube-SX Datasheet

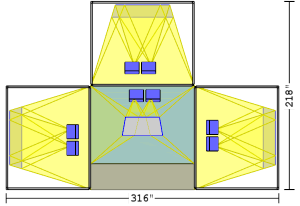

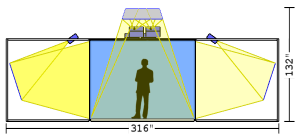

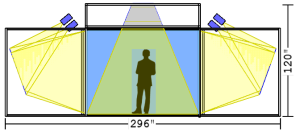

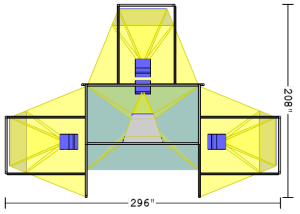

	System Specifications - Resolution: 1400x1050 per screen - Screens: 3 walls + 1 floor - Screen size: 120"w x 90" h (150" diagonal) - Footprint: 26.3'w x 18.2'd x 11'h (approx) Includes: - 8 digital SXGA+ projectors - Free-standing structure with front-surface mirrors - Custom projector positioners - Circular polarization filters and 10 pairs of glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Infitec - Infitec filters and 10 pairs of premium glasses
	Option: Active Stereo - Active stereo capable SXGA+ projectors (3 chip DLP) - 10 pairs of active shutter glasses
	Option: Intersense Tracking - IS-900 SimTracker - MicroTrax head tracker, MicroTrax 6 button wand
	Option: A.R.T. Optical Tracking - TrackPack4 (4 cameras) - Head tracker, Flystick2 (wand)
	Option: Image Generator - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
