VisCube™ C4

CAVE Immersive 3D Display

VisCube C4

Key Features:

Affordable high performance CAVE VR system
Small footprint: fits into existing spaces
– Multi-screen Immersion: 3 walls and a floor
– Extra large 12′ wide front wall allows more viewers
1920×1200 or 2560×1600 resolution projectors
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

The VisCube™ C2 and VisCube™ C4 are affordable high performance CAVE immersive virtual reality systems. They features rear-projection wall(s) and a front projected floor. The 12′ wide front wall and floor allow more viewers in the space than a standard 10′ wide CAVE configuration. The VisCube C2 and VisCube C4 are configured as turn-key immersive virtual reality systems, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C2 and VisCube C4 can be installed in existing spaces. The systems fit within standard office 9′ ceiling heights. This eliminates time-consuming and costly room modifications.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube C4 Benefits

Small Group Collaboration
The VisCube C4 is ideal for small group 3D collaboration.

Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.

Fits into Existing Spaces
No time-consuming and costly room modifications.

Turn-key VR system
Fully integrated, including sound system and control console.

Multi-Screen Applications

The VisCube provides increased immersion using multiple display surfaces surrounding the user. The floor projection allows users to move in and around virtual objects. Read more about immersive 3D applications on the Immersive 3D Applications page. For custom VisCube configurations, see the Services section.

VisCube C4 Datasheet

visbox logo
System Specifications
– Screens for C2: wall + floor
– Screens for C4: 3 walls + floor
– Resolution of front, floor: 1920×1200 or 2560×1600
– Resolution of side walls (C4): 1600×1200 or 2133×1600
– Screen size of front, floor: 144″w x 90″h
– Screen size of side walls (C4): 120″w x 90″h
– Footprint for C2: 12’w x 16.5’d x 9’h (approx)
– Footprint for C4: 24’w x 16.5’d x 9’h (approx)
Includes:
– 2 or 4 active stereo projectors (1920×1200 or 2560×1600)
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
ART logo
A.R.T. Optical Tracking
– TrackPack4 (4 cameras)
– Tracked head, tracked wand (controller)
NVIDIA logo
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– Soundbar and subwoofer (4.1)
Option: Surround Sound System
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Option: MiddleVR for Unity
– Run Unity applications in the VisCube (Read More)

Other options are also available.

Contact us for pre-sales support.

VisCube C4 dimensions

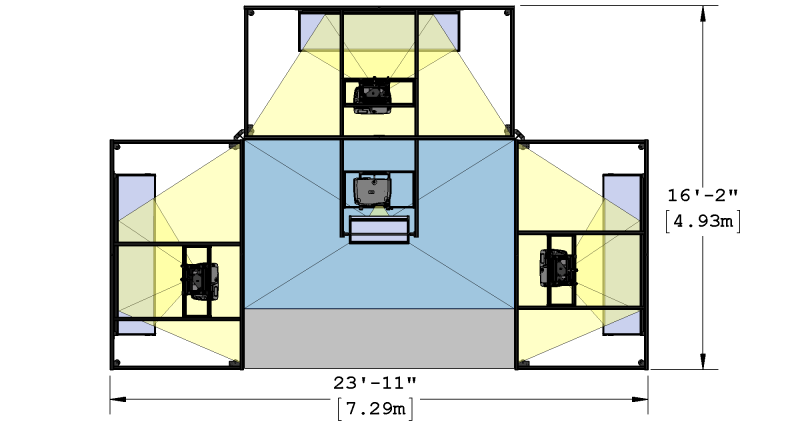

c4-wu-v2-sw-dims-top-800

c4-wu-v2-sw-dims-front-800

VisCube C2 dimensions

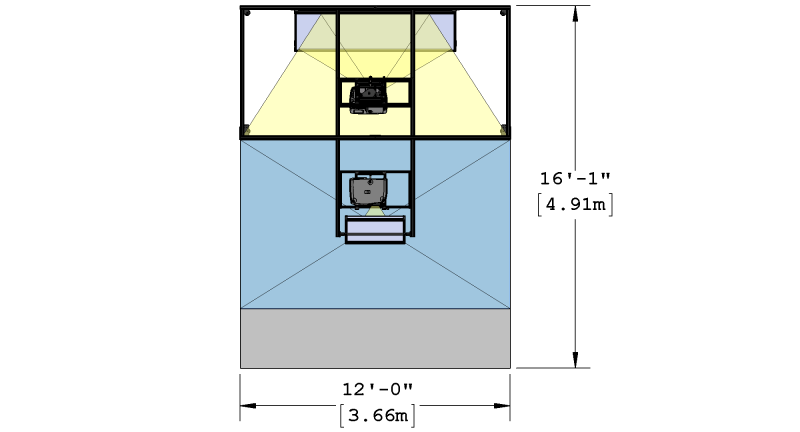

c2-wu-v2-sw-dims-top-800

c2-wu-v2-sw-dims-front-800



Other VisCube Models

VisCube M4: 12′ wide, 1920×1200 or 2560×1600
VisCube C4-4K: 14.25′ wide, 4096×2160
VisCube C4-T2: 10′ wide, 2840×2560
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096

Custom: custom screen size, resolution
