VisWall-LCD™

High Resolution Display

VisWall-LCD-4HD

Key Features:

– Scalable, extremely high resolutions possible
– Custom configurations (type and number of panels)
– High resolution panels with minimal bezels
– Size is ideal for small groups of people working together
– High performance graphics cluster (optional)

The VisWall-LCD™ is an affordable and scalable high resolution display achieved by tiling LCD flat panel displays. High resolution panels with minimum bezels are used. However, for seamless display, the VisWall and VisBlock products are more appropriate. Read more about the tradeoffs between these products.

Much like a VisWall, a VisWall-LCD allows small groups of people to collaboratively examine incredibly detailed imagery or incredible amounts of information at once. Read more about high resolution applications.

The photo at the top right is a three panel VisWall-LCD-3UHD display. Each panel is 55″ and UHD (3840×2160) resolution for an aggregate resolution over 24 million pixels. This is the equivalent of 12 regular HD panels at 1920×1080. The system has motorized height adjustment and articulated side panels. It is portable and can roll through standard doorways.

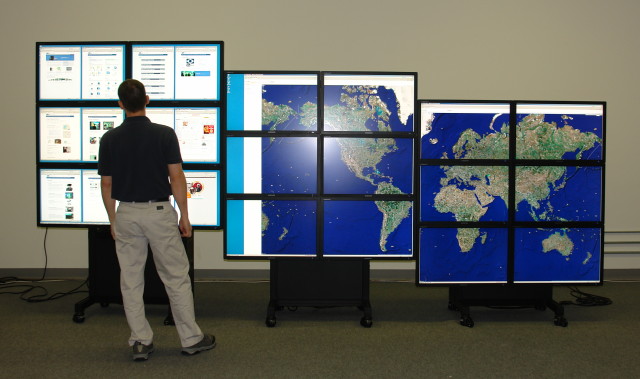

The photo at the middle right is three 6 panel VisWall-LCD-6WQ displays. Each lcd panel is 30″ and WQXGA (2560×1600) resolution for an aggregate resolution of over 72 million pixels. The base of each system is secure and contains all of the cabling and the rackmount workstation that drives the display. The entire unit is portable and height adjustable, allowing it to roll through standard doorways.

The photo at the bottom right is a four panel VisWall-LCD-4HD display. Each lcd panel is 55″ and HD (1920×1080) resolution. The aggregate display is 110″ and 3840×2160 resolution. This panel features ultra narrow bezels with an image-to-image gap of less than 6mm!

Have questions? Contact us.







NOTE: Many other configurations are possible with different numbers and types of panels . Other structures, with and without a graphics workstation or cluster are also possible. Much like our other display products, each VisWall-LCD is custom built-to-order.

Want to know more? Contact us for pre-sales support.

VisWall-LCD-3UHDVisWall-LCD-6WQVisWall-LCD-4HD

VisWall-LCD-6WQ Datasheet

visbox logo

System Specifications:
Panel Resolution: 2560×1600
– Aggregate Resolution: 5120×4800
– Panel Size: 30″ diagonal
– Bezel Size: 24.5mm (49mm image to image)
– Display Size: 54.4″w x 53.1″h
– Footprint: 54.4″w x 61″-78″h x 21″d (approx)
Includes:
– Six WQXGA LCD panels in 2w x 3h array
– Height adjustable panel mounting grid
– Six adjustable panel mounts
– Base enclosure with power and video cable management
– Image Generator with NVIDIA graphics (6 DVI outputs)
– Video and power cabling

Multiple units can be used side-by-side to create larger display systems.

VisWall-LCD-6WQVisWall-LCD-6WQVisWall-LCD-6WQ 3 Units

VisWall-LCD-3HD Datasheet

visbox logo

System Specifications:
– Panel Resolution: 1920×1080
– Aggregate Resolution: 1920×3240
– Panel Size: 55″ diagonal
Bezel Size: 1.8mm, 3.7mm (5.5mm image to image)
– Display Size: 47.6″w x 80.4″h
– Footprint: 47.6″w x 86″-96″h x 21″d (approx)
Includes:
– Three HD ultra narrow bezel LCD panels in 1w x 3h array
– Height adjustable panel mounting grid
– Three adjustable panel mounts
– Base enclosure with power and video cable management
– Image Generator with NVIDIA graphics (3 DVI outputs)
– Video and power cabling

Multiple units can be used side-by-side to create larger display systems.

VisWall-LCD-3HDVisWall-LCD-3HDVisWall-LCD-3HD 3 Units

VisWall-LCD-4HD Datasheet



visbox logo

System Specifications:
– Panel Resolution: 1920×1080
– Aggregate Resolution: 3840×2160
– Panel Size: 55″ diagonal
Bezel Size: 1.8mm, 3.7mm (5.5mm image to image)
– Display Size: 95.2″w x 53.6″h
– Footprint: 96″w x 73″-85″h x 28″d (approx)
Includes:
– Four HD ultra narrow bezel LCD panels in 2w x 2h array
– Height adjustable panel mounting grid
– Four adjustable panel mounts
– Base enclosure with power and video cable management
– Image Generator with NVIDIA graphics (4 DVI outputs)
– Video and power cabling

Multiple units can be used side-by-side to create larger display systems.



VisWall-LCD-4HDVisWall-LCD-4HDVisWall-LCD-4HD 2 Units

VisWall-LCD-3UHD Datasheet



visbox logo

System Specifications:
– Panel Resolution: 3840×2160
– Aggregate Resolution: 11520×2160
– Panel Size: 55″ diagonal
– Bezel Size: 8mm (16mm image to image)
– Display Size: 144″w x 27.75″h
– Footprint: 144″w x 59″-79″h x 31″d (approx)
Includes:
– Three UHD LCD panels in 3w x 1h array
– Motorized, height adjustable panel mounting grid
– Articulated side panels
– Three adjustable panel mounts
– Base enclosure with power and video cable management
– Image Generator with NVIDIA graphics
– Video and power cabling

VisWall-LCD-3UHDVisWall-LCD-3UHD

VisWall-LCD-6UHD Datasheet



visbox logo

System Specifications:
– Panel Resolution: 3840×2160
– Aggregate Resolution: 11520×4320
– Panel Size: 40″ diagonal
– Bezel Size: 0.5″ (1″ image to image)
– Display Size: 107″w x 40.4″h
– Footprint: 107″w x 63″-83″h x 31″d (approx)
Includes:
– Six UHD LCD panels in 3w x 2h array
– Motorized, height adjustable panel mounting grid
– Articulated side panels
– Three adjustable panel mounts
– Base enclosure with power and video cable management
– Image Generator with NVIDIA graphics
– Video and power cabling

VisWall-LCD-6UHDVisWall-LCD-6UHD
