The VisWall-LCD™ is an affordable and scalable high resolution display achieved by tiling LCD flat panel displays. High resolution panels with minimum bezels are used. However, for seamless display, the VisWall and VisBlock products are more appropriate. Read more about the tradeoffs between these products.

Much like a VisWall, a VisWall-LCD allows small groups of people to collaboratively examine incredibly detailed imagery or incredible amounts of information at once. Read more about high resolution applications.

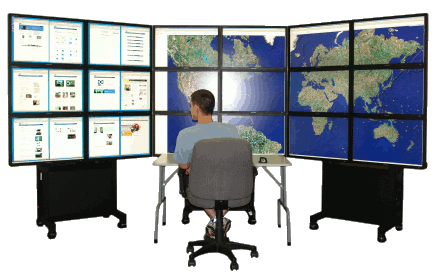

Pictured at the top right are three 6 panel VisWall-LCD-6WQ displays. Each lcd panel is 30" and WQXGA (2560x1600) resolution for an aggregate resolution of over 72 million pixels! The base of each system is secure and contains all of the cabling and the rackmount workstation that drives the display. The entire unit is portable and height adjustable, allowing it to roll through standard doorways.

Pictured to the right is one 18 panel VisWall-LCD system with the same 30" panels, also for an aggregate resolution of 72 million pixels!

Pictured to the lower right is a four panel VisWall-LCD-4HD display. Each lcd panel is 55" and HD (1920x1080) resolution. The aggregate display is 110" and 3840x2160 resolution. This panel features ultra narrow bezels with an image-to-image gap of less than 6mm!

Pictured at the bottom are two older 15 panel VisWall-LCD displays that were built for the Lunar and Planetary Lab (LPL) at the University of Arizona. The displays are used to showcase images taken by the very high resolution HiRISE instrument aboard the Mars Reconnaissance Orbiter (MRO). Each lcd panel is 20" and UXGA resolution (1600x1200) for an aggregate resolution of over 28 million pixels per display.

Have questions? Contact us.

VisWall-LCD (246 KB) - One page printable PDF.

NOTE: Many other configurations are possible with different numbers and types of panels . Other structures, with and without a graphics workstation or cluster are also possible. Much like our other display products, each VisWall-LCD is custom built-to-order.


Want to know more? Contact us for pre-sales support.

VisWall-LCD-6WQ Datasheet

---

System Specifications: - Panel Resolution: 2560x1600 - Aggregate Resolution: 5120x4800 - Panel Size: 30" diagonal - Bezel Size: 24.5mm (49mm image to image) - Display Size: 54.4"w x 53.1"h - Footprint: 54.4"w x 61"-78"h x 21"d (approx) Includes: - Six WQXGA LCD panels in 2w x 3h array - Height adjustable panel mounting grid - Six adjustable panel mounts - Base enclosure with power and video cable management - Image Generator with NVIDIA graphics (6 DVI outputs) - Video and power cabling Multiple units can be used side-by-side to create larger display systems.

VisWall-LCD-3HD Datasheet

---

System Specifications: - Panel Resolution: 1920x1080 - Aggregate Resolution: 1920x3240 - Panel Size: 55" diagonal - Bezel Size: 1.8mm, 3.7mm (5.5mm image to image) - Display Size: 47.6"w x 80.4"h - Footprint: 47.6"w x 86"-96"h x 21"d (approx) Includes: - Three HD ultra narrow bezel LCD panels in 1w x 3h array - Height adjustable panel mounting grid - Three adjustable panel mounts - Base enclosure with power and video cable management - Image Generator with NVIDIA graphics (3 DVI outputs) - Video and power cabling Multiple units can be used side-by-side to create larger display systems.

VisWall-LCD-4HD Datasheet

---

System Specifications: - Panel Resolution: 1920x1080 - Aggregate Resolution: 3840x2160 - Panel Size: 55" diagonal - Bezel Size: 1.8mm, 3.7mm (5.5mm image to image) - Display Size: 95.2"w x 53.6"h - Footprint: 96"w x 73"-85"h x 28"d (approx) Includes: - Four HD ultra narrow bezel LCD panels in 2w x 2h array - Height adjustable panel mounting grid - Four adjustable panel mounts - Base enclosure with power and video cable management - Image Generator with NVIDIA graphics (4 DVI outputs) - Video and power cabling Multiple units can be used side-by-side to create larger display systems.

Other configurations are also available.
