VisWall™ T3W, T3

High Resolution PowerWall 3D Display

VisWall T3W, T3

Key Features:

– High Resolution PowerWall display wall
– Free-standing or in-wall (e.g. conference room)
– Extra large 10′ or 12′ wide screen
4096×2560 resolution
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

The VisWall™ T3W and VisWall™ T3 are high resolution PowerWall display walls. The VisWall T3W and VisWall T3 feature a large rear-projection wall. These systems can be configured as a standalone display or as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

In addition to the standard VisWall models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisWall

VisWall T3W, T3 Benefits

Small Group Collaboration
The VisWall PowerWall is ideal for small group collaboration.
Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.
Compact Footprint
The VisWall T3W and VisWall T3 fit into small spaces
Turn-key system
Fully integrated, including sound system and control console.
4K resolution

Ultra Resolution

The VisWall T3 and VisWall T3W PowerWalls feature a large screen size and projectors that are stereo 3D capable. The result is a High Resolution Display that can run High Resolution Applications and Immersive 3D Applications. For custom VisWall configurations, see the VisWall Custom section.

VisWall T3W, T3 Datasheet

visbox logo
System Specifications
– Resolution: 4096×2560
– Screen size for T3W: 120″w x 75″h (3.05m x 1.91m)
– Screen size for T3: 144″w x 90″h (3.66m x 2.29m)
– Footprint for T3W: 10.5’w x 4.5’d x 8.5’h (3.07m x 1.30m x 1.93m)
– Footprint for T3: 12’w x 5.6’d x 8.5’h (3.67m x 1.71m x 2.48m)
Includes:
– 3 active stereo projectors (2560×1600 each)
– Digital edge blending
– Free-standing structure with front-surface mirrors
– In-wall option (T3W)
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Option: A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand (controller)
Option: Sound System
– Soundbar and subwoofer (4.1)
Option: Light Block
– Fabric enclosing system for free-standing version
– Blocks ambient light and restricts access

Other options are also available. Contact us for pre-sales support.

VisWall T3W dimensions

vw-t3w-dims-top-800 vw-t3w-dims-front-800

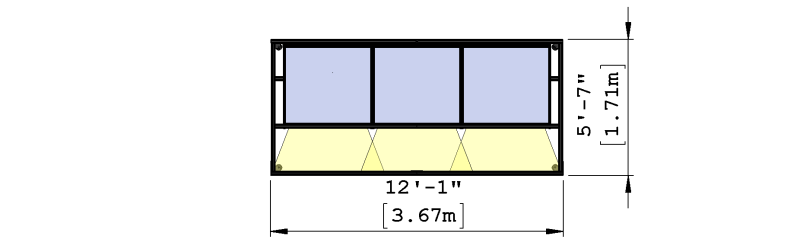

VisWall T3 dimensions

vw-t3-dims-top-800 vw-t3-dims-front-800


Other VisWall Models

VisWall 4K: 14.3′ wide, 4096×2160
VisWall T4: 12′ wide, 4600×2875, only 30″ deep
VisWall custom: custom resolution and screen size
VisWall-LCD: array of LCD panels
