VisCubeā„¢ C4-T4 (Legacy)

CAVE Immersive 3D Display

VisCube C4-T4

Key Features:

High Resolution CAVE VR system
Small footprint: fits into existing spaces
– Multi-screen Immersion: 3 walls and a floor
– Extra large 12′ wide front wall allows more viewers
3456×2160 or 4608×2880 resolution
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page

The VisCubeā„¢ C4-T4 is an high resolution CAVE immersive virtual reality system. It features rear-projection walls and a front projected floor. The 12′ wide front wall and floor allow more viewers in the space than a standard 10′ wide CAVE configuration . The VisCube C4-T4 is configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See datasheet below.

The VisCube C4-T4 can be installed in existing spaces. The system fits within standard office 9′ ceiling heights. This eliminates time-consuming and costly room modifications.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.


VisCube C4-T4

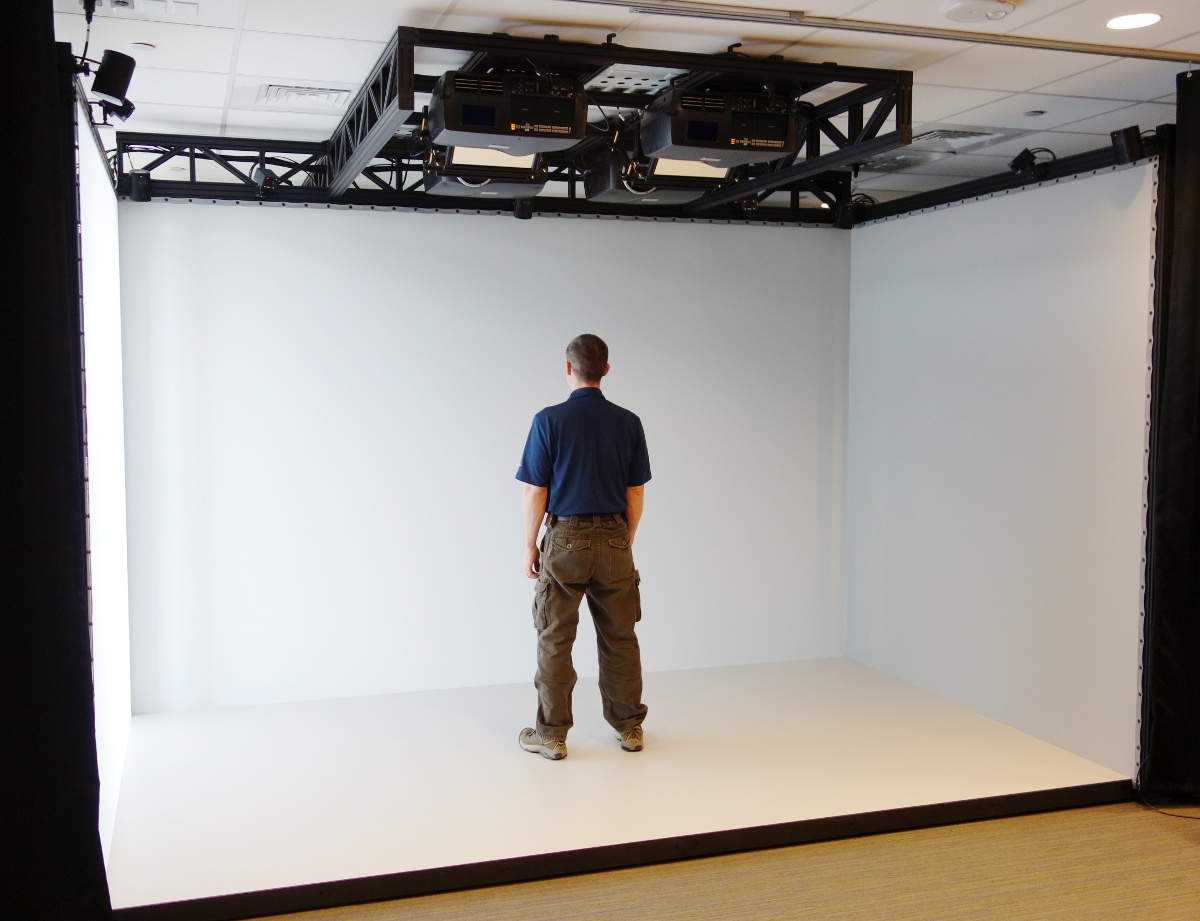

VisCube C4-T4 CAVE installed at Pfizer

A high-resolution VisCube C4-T4 CAVE was installed at Pfizer Nueroscience in Cambridge, Massachusetts. The system features 12 high-end active stereo projectors and ART optical tracking.

Link to Boston Globe article about the research center with photo of system
Pfizer press release including photo of system

VisCube C4-T4 Benefits

Small Group Collaboration
The VisCube C4-T4 is ideal for small group 3D collaboration.

Wireless Optical Tracking
Robust, wireless optical tracking from A.R.T.

Fits into Existing Spaces
No time-consuming and costly room modifications.


Turn-key VR system
Fully integrated, including sound system and control console.

Ultra Resolution

The VisCube C4-T4 uses active stereo like the VisCube C4 except with almost 4 times the resolution. Multiple screens surround the users for maximum immersion. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

VisCube C4-T4 Datasheet

visbox logo
System Specifications
– Screens: 3 walls + 1 floor
– Resolution of front wall: 3456×2160 or 4608×2880
– Resolution of floor surface: 3456×1920 or 4608×2560
– Resolution of side walls: 1920×2160 or 2560×2880
– Screen size of front wall: 144″w x 90″h
– Screen size of floor surface: 144″w x 80″h
– Screen size of side walls: 80″w x 90″h
– Footprint: 22’w x 14’d x 9’h (approx)
– 12 active stereo projectors (1920×1200 or 2560×1600)
– Digital edge blending
– Free-standing structure with front-surface mirrors
– Raised floor surface
– Custom projector positioners
Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Integrated wire ducts for clean cabling
– Installed and calibrated on-site by Visbox, Inc.
A.R.T. Optical Tracking
– ARTTRACK5 system (4 high resolution cameras)
– Tracked head, tracked wand (controller)
Image Generator
– Graphics workstation with NVIDIA Quadro graphics
– 19″ APC rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
Sound System
– 5.1 Surround speakers: 5 satellite, subwoofer
– 5.1 Surround system processor/amplifier

Option: Light Block
– Fabric enclosing system
– Blocks ambient light and restricts access

Other options are also available.

Contact us for pre-sales support.

VisCube C4-T4 Top DrawingVisCube C4-T4 Front Drawing

Other VisCube Models

VisCube M4, M5: 12′ wide, 1920×1200
VisCube C4: 12′ wide, 1920×1200 or 2560×1600
VisCube C4-4K: 14.25′ wide, 4096×2160
VisCube C4-T2: 10′ wide, 2840×2560
VisCube C4-T3: 12′ wide, 4096×2560
VisCube C4-T3X: 13′ wide, 6000×4096
VisCube LED: DirectView LED, bright, scalable

Custom: custom screen size, resolution
