Key Features:

- Affordable CAVE-like system
- Fits into existing spaces with minimal room modifications
- Multi-screen Immersion: wall and floor
- Extra large 13.3' wide front wall
- HD (1920x1080) resolution
- Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
- Custom configurations available, see Services page

VisCube™ C2-HD

Multi-Screen Immersive 3D Display

Multi-Screen Applications
The VisCube provides increased immersion using multiple display surfaces surrounding the user. Read more about immersive applications on the VisBox applications page. For custom VisCube configurations, see the Services section.

Other VisCube Models

VisCube C4-HD: 13.3' wide, 1920x1080
VisCube C4-WU: 12' wide, 1920x120
VisCube C4-WQ: 12' wide, 2560x1600
VisCube C4-2HD: 10' wide, 1920x1920
VisCube C4-4K: 13.3' wide, 4096x2400

Custom: custom screen size, resolution

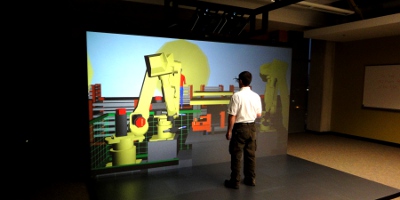

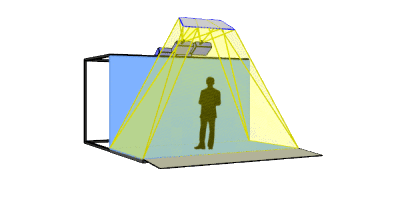

The VisCube™ C2-HD is an affordable CAVE-like immersive virtual reality system. It features a rear-projection wall and a front projected floor. The 13.3' wide front wall and floor allow more viewers in the space than the standard 10' wide configuration (VisCube C4-SX). The VisCube C2-HD can be configured as a turn-key immersive virtual reality system, complete with a tracking system and graphics workstation. See options below.

The VisCube C2-HD can be installed in existing spaces with minimal room modifications. Only a small area directly above the floor projection requires more than 9' of ceiling height.

For detailed information about the C2-HD model, view the VisCube C2-HD Datasheet below.

In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.

Have questions? Contact us.

VisCube C2-HD (199 KB) - One page printable PDF.

VisCube C2-HD Datasheet

	System Specifications - Resolution: 1920x1080 front wall, floor - Screens: wall + floor - Screen size: 160"w x 90"h - Footprint: 13.3'w x 18.8'd x 11.5'h (approx) Includes: - 4 digital HD projectors - Free-standing structure with front-surface mirrors - Raised floor surface - Custom projector positioners - Circular polarization filters and 10 pairs of glasses - Video and power cabling - Installed and calibrated on-site by Visbox, Inc.
	Option: Infitec - Infitec filters and 10 pairs of premium glasses
	Option: Active Stereo - see VisCube C4-WU
	Option: Intersense Tracking - IS-900 SimTracker - MicroTrax head tracker, MicroTrax 6 button wand
	Option: A.R.T. Optical Tracking - TrackPack2 (2 cameras) or TrackPack4 (4 cameras) - Head tracker, Flystick2 (wand)
	Option: Image Generator - Graphics workstation with NVIDIA graphics - Software demos, applications, and development libraries
VR	Option: Turn-key VR system - Tracking package (see options above) - Graphics workstation (see above) - Speakers and amplifier

Other options are also available.
